AEM 12 Position Universal Trim Pot

We use UPS, FedEx, DHL, and USPS for deliveries. We are not responsible for any shipping problems and shall not be held liable for any "reasonable" delay beyond our advertised delivery time-frames. Shipment by Ground Courier can take up to 15 business days for delivery. Express Courier can take up to 3 business days for delivery. Shipping time frames are once the order has been processed. Due to high demand, order processing can take 5 to 7 business days.

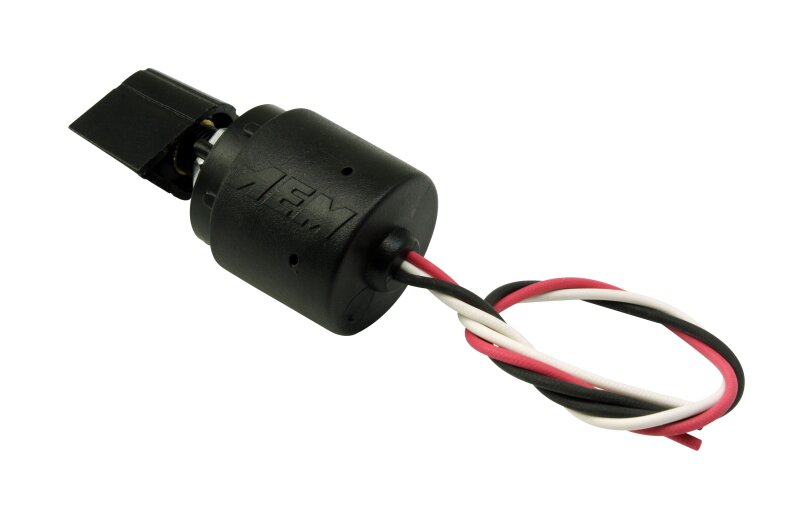

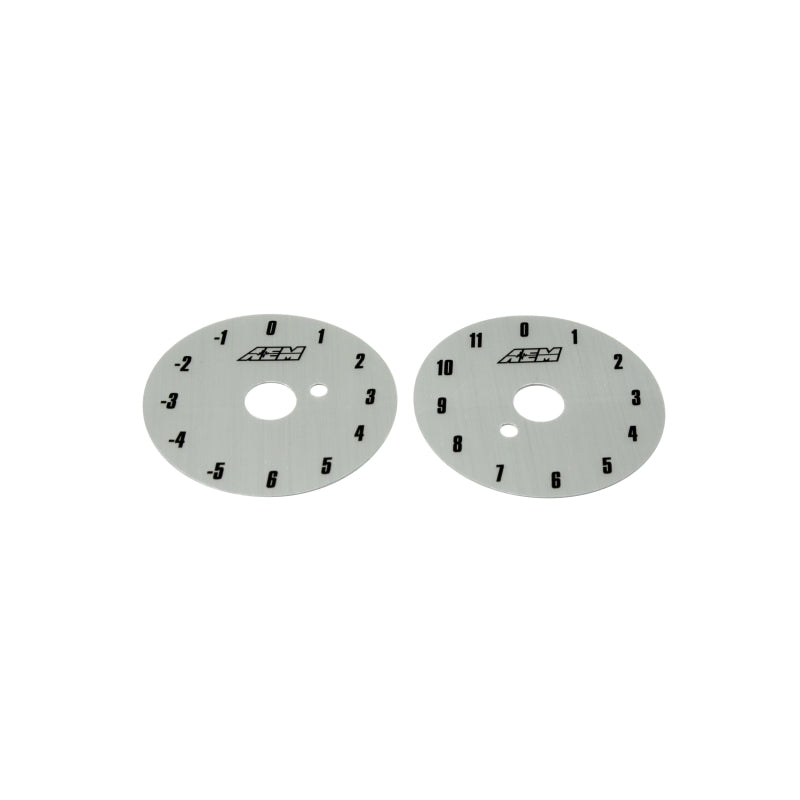

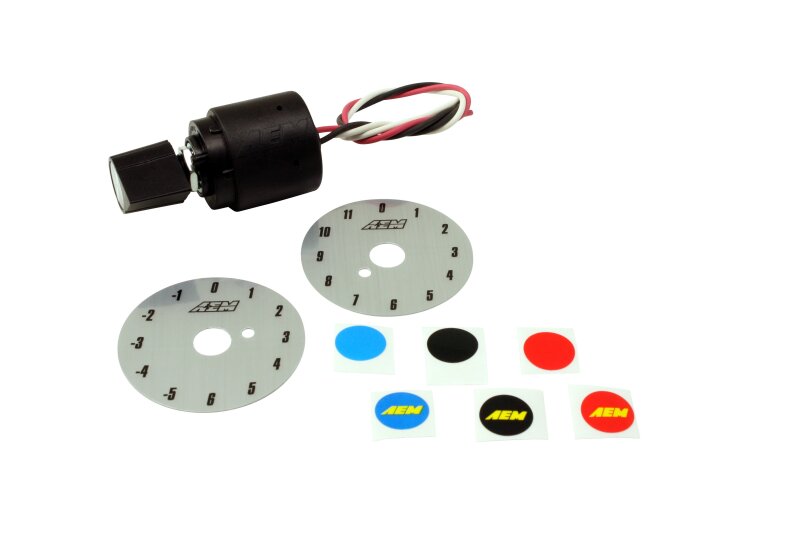

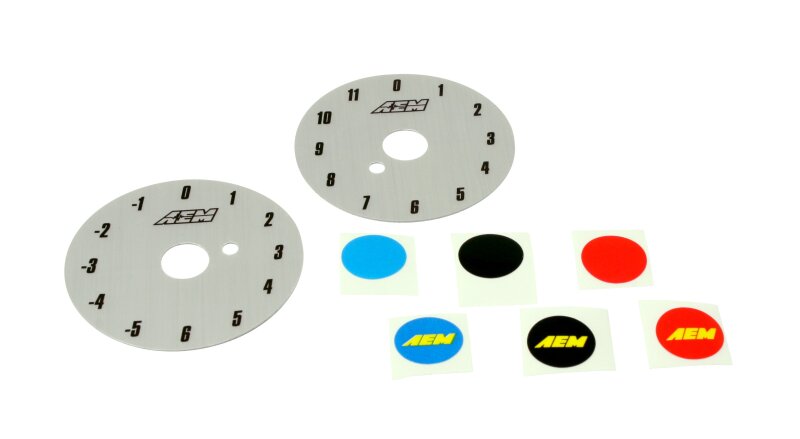

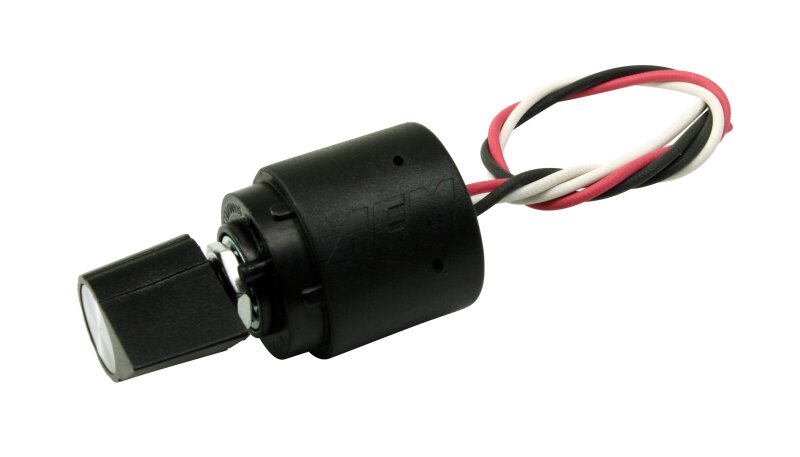

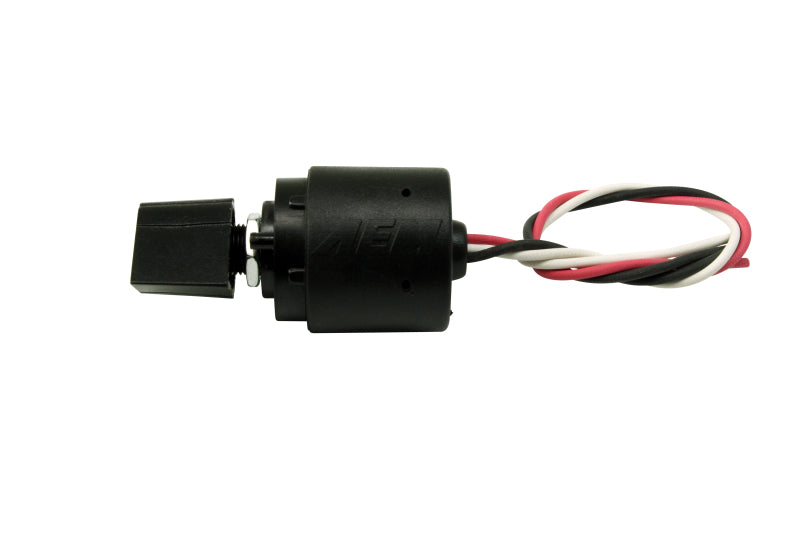

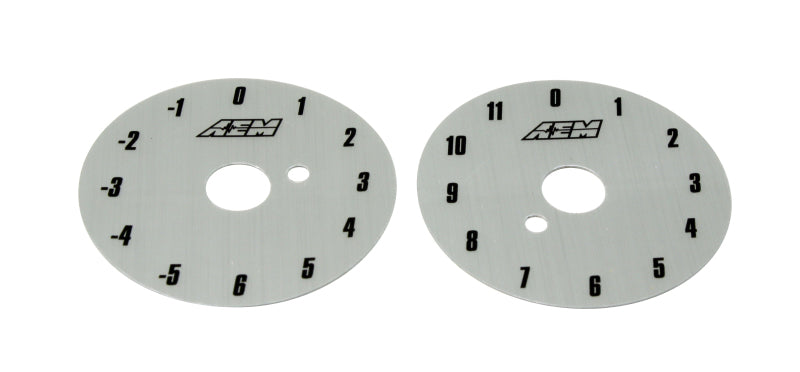

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors

• Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
• 12 Position Trim Pot Performance Specifications
• Knob Set Screw: 1/16" Allen
• Total Resistance: 14.3KO
• Cycles Minimum: 10,000
• Supply Current: 5 Vdc
• Degree Rotation: 330
• Mounting: 3/8" Hole
• Jam Nut: 1/2" Hex
• Positions: 12
