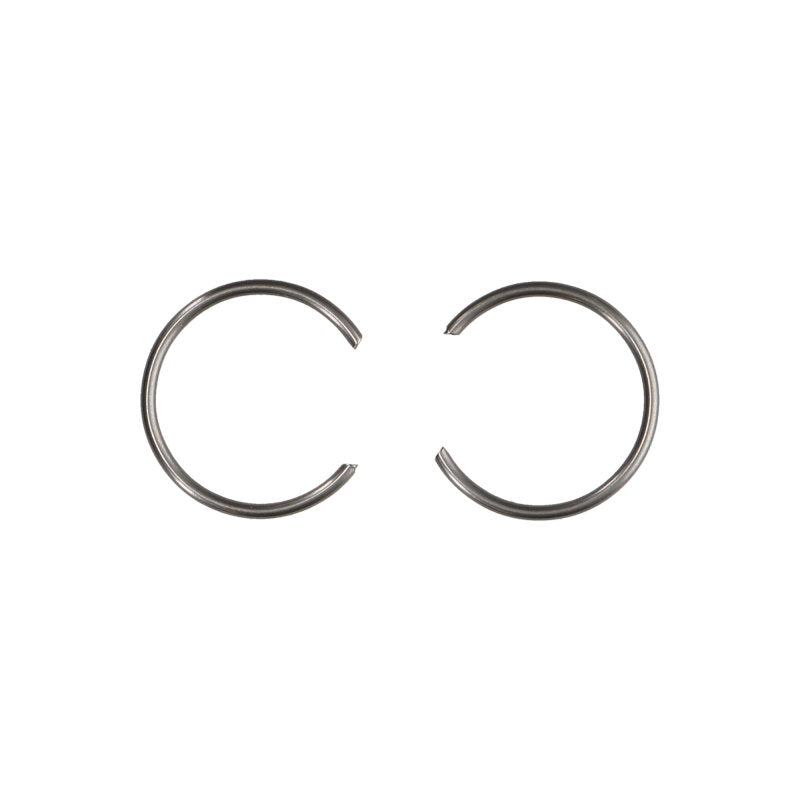

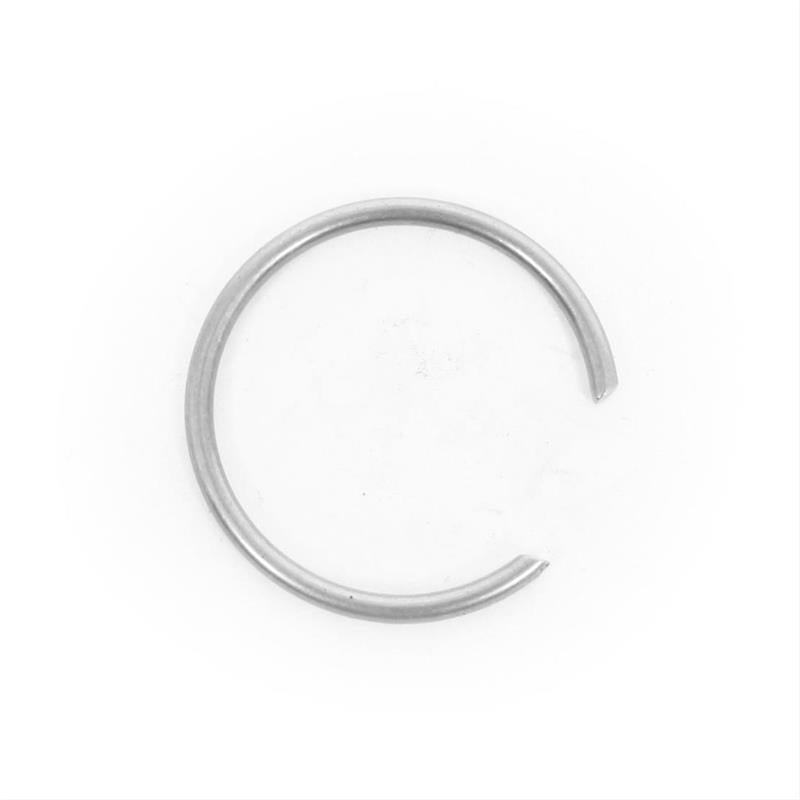

JE Pistons Tru-Arc Lock

We use UPS, FedEx, DHL, and USPS for deliveries. We are not responsible for any shipping problems and shall not be held liable for any "reasonable" delay beyond our advertised delivery time-frames. Shipment by Ground Courier can take up to 15 business days for delivery. Express Courier can take up to 3 business days for delivery. Shipping time frames are once the order has been processed. Due to high demand, order processing can take 5 to 7 business days.

Most JE shelf pistons include double spiro locks as standard equipment. These locks are installed by spreading the lock between 1/8" and 1/4" and rotating the lock into the groove in the piston pin boss. Wire locks are installed in much the same manner but require chamfered wrist pins. Wire locks tend to spread side loads over more of the piston pin boss area and are considered to be a stronger method of holding the pin in place. Hook wire locks have a built in hook at the end gap. The purose for this style of wire lock is to prevent rotation within the lock groove itself. Tru arc locks fall between these two and can be used with the stock sharp edge wrist pins. The advantage of tru-arc locks is ease of installation and they can be re-used unlike spiro locks, however they are not recommended for medium to high horsepower applications.
