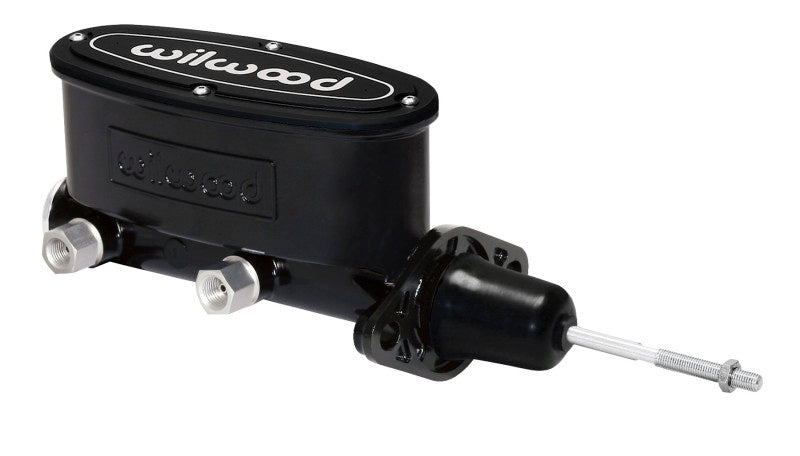

Wilwood High Volume Tandem Master Cylinder - 7/8in Bore Black-W/Pushrod

We use UPS, FedEx, DHL, and USPS for deliveries. We are not responsible for any shipping problems and shall not be held liable for any "reasonable" delay beyond our advertised delivery time-frames. Shipment by Ground Courier can take up to 15 business days for delivery. Express Courier can take up to 3 business days for delivery. Shipping time frames are once the order has been processed. Due to high demand, order processing can take 5 to 7 business days.

Wilwood’s 7/8" or 15/16" bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They’re designed for mount flanges from 3.22” to 3.40”, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.
